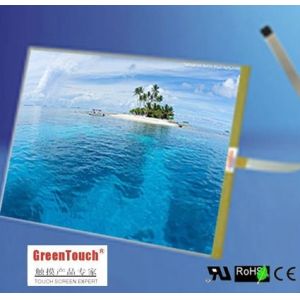

High Accuracy 17 Inch 4 Wire Resistive Touch Screen with 4096x4096
Resolution
Model Information:
| Product model | Size | 4wire TP Product size | |||||
| Out sizeTP(mm) | VA size(mm) | AA size(mm) | Thickness | PFC location | |||
| GT-4W-17.0A-1 | 17" | 355.00 x 288.00 | 341.50 x 275.00 | 337.00 x 269.00 | 2.3mm | Short side | |
Product Specification:
| Interface Type: | USB or RS232 |
| Resolution | 4096x4096 |
| Screen Ratio | 4:3 |
| Material | Glass + Film or Film + Film |
| Certificates | CE, FCC, RoHS |
| Input method | Finger or touch pen |
| Position accuracy | 1.15~2.5mm |
| Operating Voltage | DC ≤ 10V |
| Operating current | 5~25mA |
| Response time | Less than 10ms |
| Touch action force | 20~100g |
| Operating temperature | -10°C~60°C |
| Storage temperature | -20°C~70°C |
| Surface hardness | 3H |
| Working environment | Under sunlight, indoor and outdoor |
| Transparency | ≥75% |
| Isolation resistance | ≥20MΩ DC 25V |
| X.Y resistance | 100Ω~1000Ω according to the size |
| Linearity | ≤1.5% |
| The number of hits | ≥1,000,000/point |
| Warranty | 1 year |
| Support Systems | Windows 2000/Windows XP/Win 7/ Win 8/Windows NT/Linux/Mac |
technology principle:
Shenzhen GreenTouch Technology Co., Ltd. is a professional manufacturer of product.Our company specializes in R&D, manufacture and marketing of high-grade touch screen and value-added touch machine. Our company has our own brand—GreenTouch and provides customers with touch products including IR touch screen, four-wire touch screen, five-wire touch screen,various touch screen monitors and touch all in one PC TV.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 1000pcs.
A: Low MOQ, 1pc for sample checking is available.
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: Yes, we offer 1 year warranty to our products.
A: Firstly, Our products are produced in strict quality control
system and the defective rate will be less
than 0.2%.Secondly, during the guarantee period, we will send new
panels with new order for small quantity. For
defective batch products, we will repair them and resend them to
you or we can discuss the solution including re-call according to
real situation.
|
|
